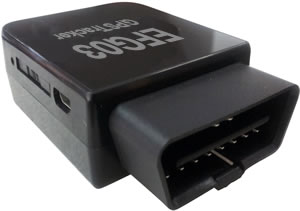

EFG03 - OBDII Plug-In & Track GPS Tracking Solution

Our EFG03 is a simple to install Plug In & Track GPS unit that utilises your vehicle's On Board Dianoses connector for its operation. Almost all vehicles manufactured after 1996 are fitted with OBD II connectors. If you have any doubt please contact your vehicles manufacturer.

Live Vehicle Tracking
OBD II connector/Plug-in and play
Real-time tracking
GPS logging/OTA
Support quad band 850/900/1800/1900MHz
High sensitivity and the most advanced GPS chip
Small size, easily hidden
Low power consumption
Fast signal capture
Power off Alarm = Optional ( Additional Fees Apply )
3 minute position reporting/polling/uploading
12/24 volt compatable
Advanced Recovery

Lifetime Unit & Network Warranty* ( Activate Subscription to GoGPS Network Required )

THE DEAL: 1 x EFG03 OBD11 GPS Tracker & 1 year sim card, data, interface & apps for $349.00

After 1st Free Year, sim card, data, interface & apps cost is $99.95 per year

Total Cost - 2 Year Contract $ 448.95.

Phone 1300 2 GOGPS (1300 246 477)  or make an on line Enquiry.

 Online Enquiry




Cellular CoverageWeb InterfaceData TransferSmart IntelligenceNo Wiring
Required
Advanced Recovery12 / 24 volt CompatibleSimple Plug In
to Track
1 Minute Reporting

EFG03


Specifications:

GSM: 850/900/1800/1900 MHz
GPRS: Class12, TCP/IP built-in GSM Module
GPS Module: SiRF Star III
GPS Channels: 20
GPS sensitivity: - 159dBm
Acquisition sensitivity: - 144dBm
GPS location precision: 10 meters(2D RM)
GSM location precision: 50-300 meters
Speed precision: 0.1meter/second
Locating time cost: Hot start:﹤2sec(Open Sky) Warm start:﹤15 sec Cold start:﹤38 sec(Open Sky)
Maximum elevation: 18000 meters
Maximum speed: 515 meters/second
Gravity acceleration: ﹤4g
Antenna: GSM quad-band antenna, GPS high gain antenna
LED indicator: Three LED indicator: GPS-blue, GSM-green, Power-red
Power input: Car power supply:12-24vDC
Dimensions: 87mm*43mm*14mm
Weight: 46g
Battery: Yes built-in
Working temperature: -20--+70°C
Working humidity: 20%---80%RH
Working voltage: 7-24v DC
Currency:~60mA(12vDC) ~35mA(24vDC)
Standby Currency: Less than 50mA
LED: Yes indicating the work status of GPS,GSM and others
